Weight Bearing CT Imaging
HiRiseTM
See Alignment Under Load –
From Hip to Foot

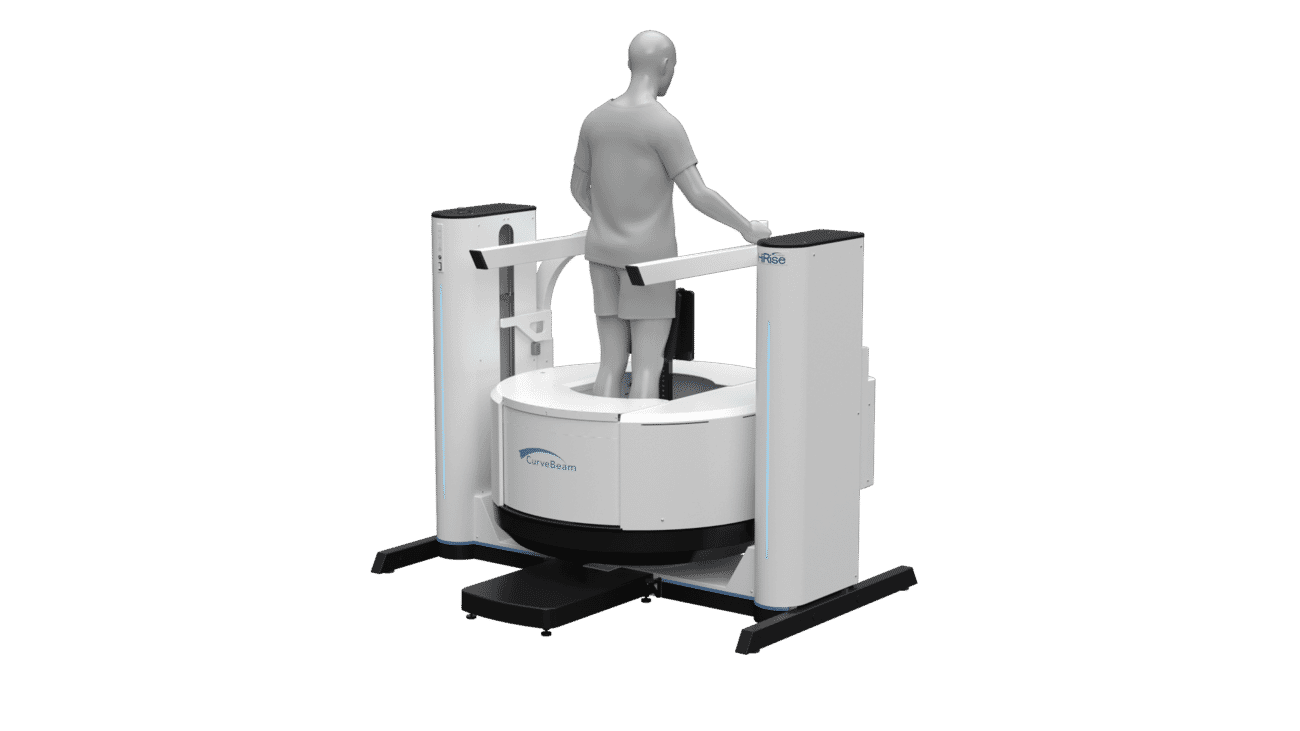

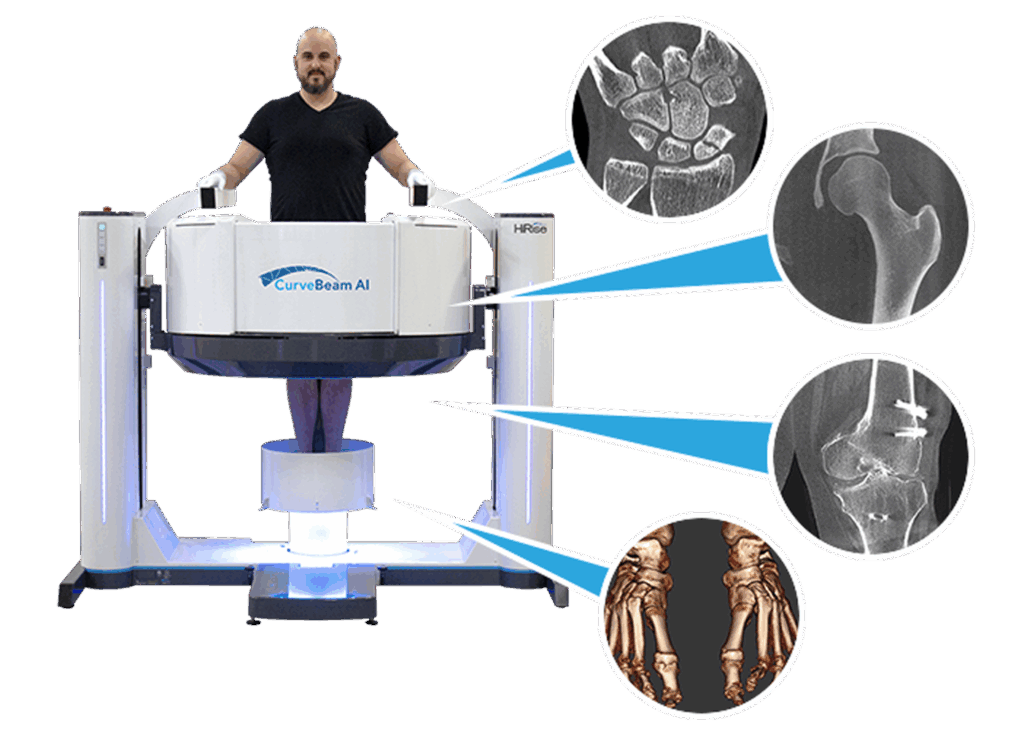

HiRise provides true weight bearing CT of the lower extremities and high-resolution CT imaging of the upper extremities in one compact system designed for orthopedic care.
HiRise is CE Marked and FDA 510(k) cleared. Enhanced HiRise is CE Marked, FDA 510(k) cleared, and is entered in the ARTG, (462546).
Why HiRiseTM?
True Weight Bearing
Capture lower extremity anatomy in the natural standing position
High Resolution
Choose from 0.2 mm, 0.3 mm, and 0.5 mm resolution protocols to match the clinical task
Low Dose
Orthopedic imaging protocols designed to deliver the necessary image quality at an appropriate radiation dose
Efficient Acquisition
Support point-of-care workflows with fast scans and streamlined positioning
ONE SYSTEM. MULTIPLE APPLICATIONS.
Comprehensive Orthopedic Imaging

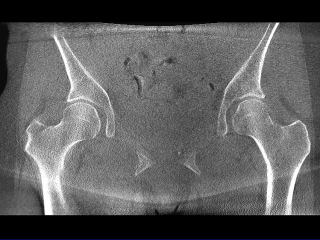

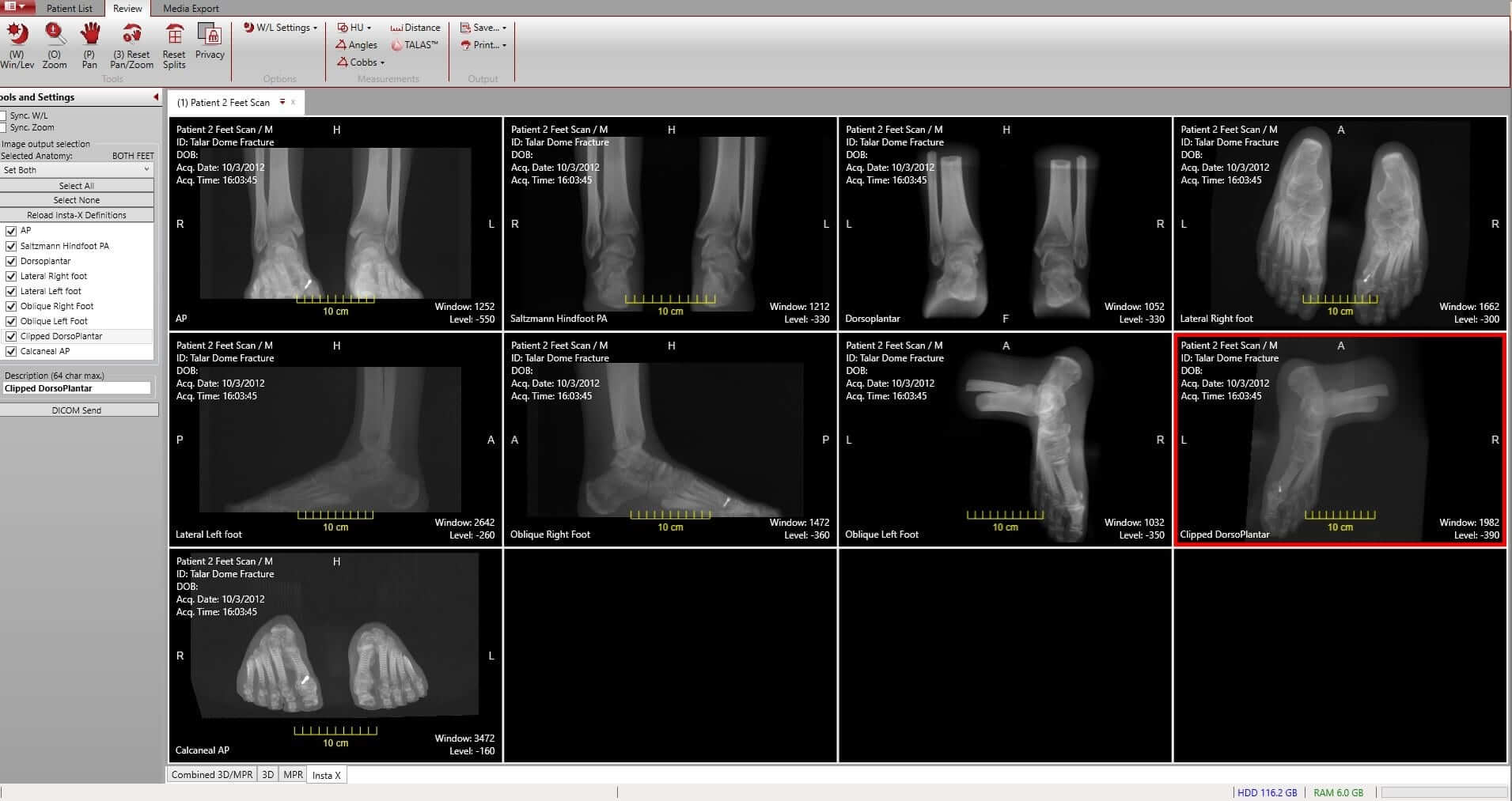

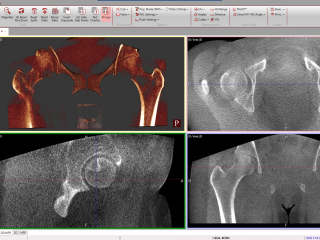

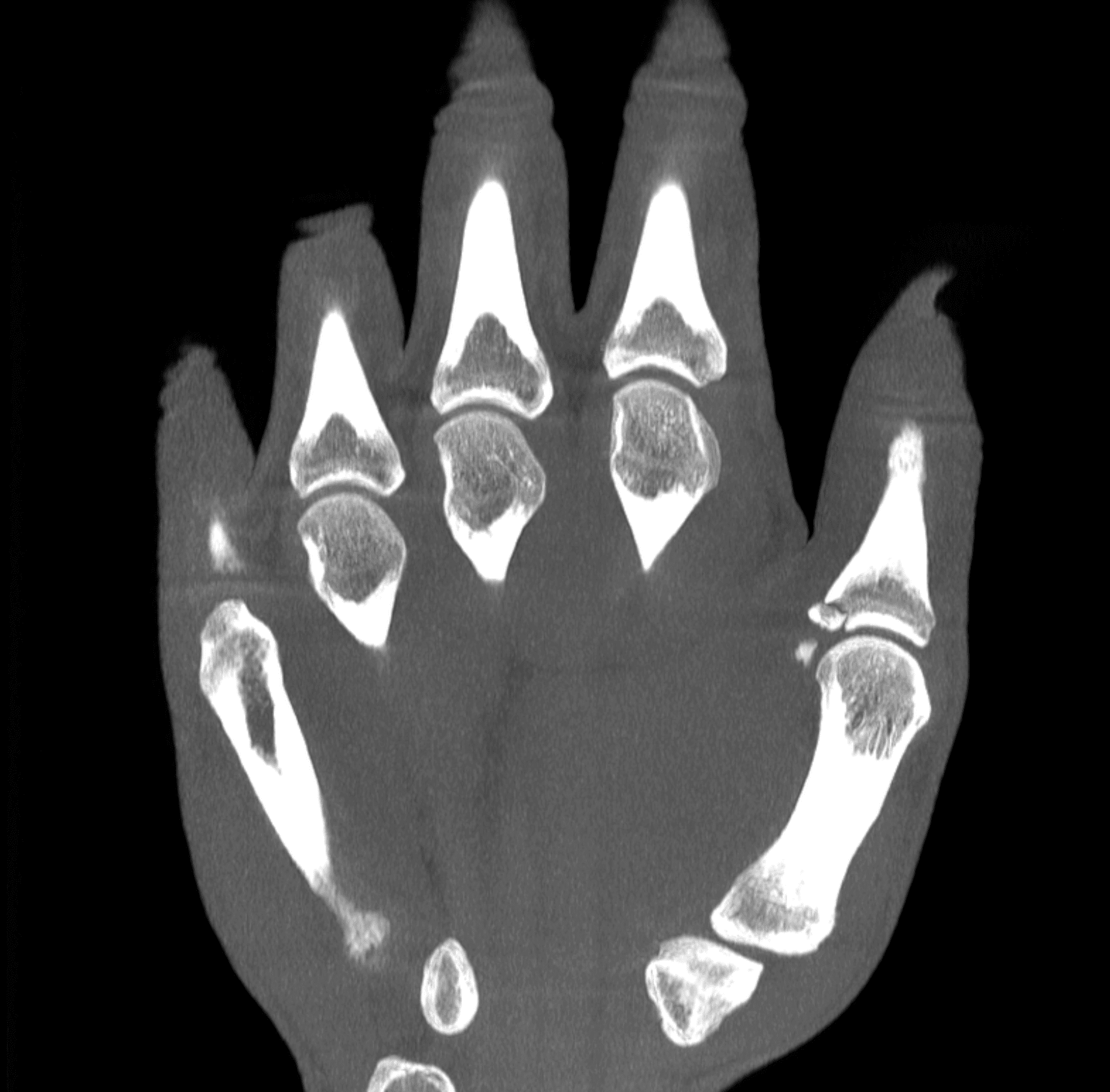

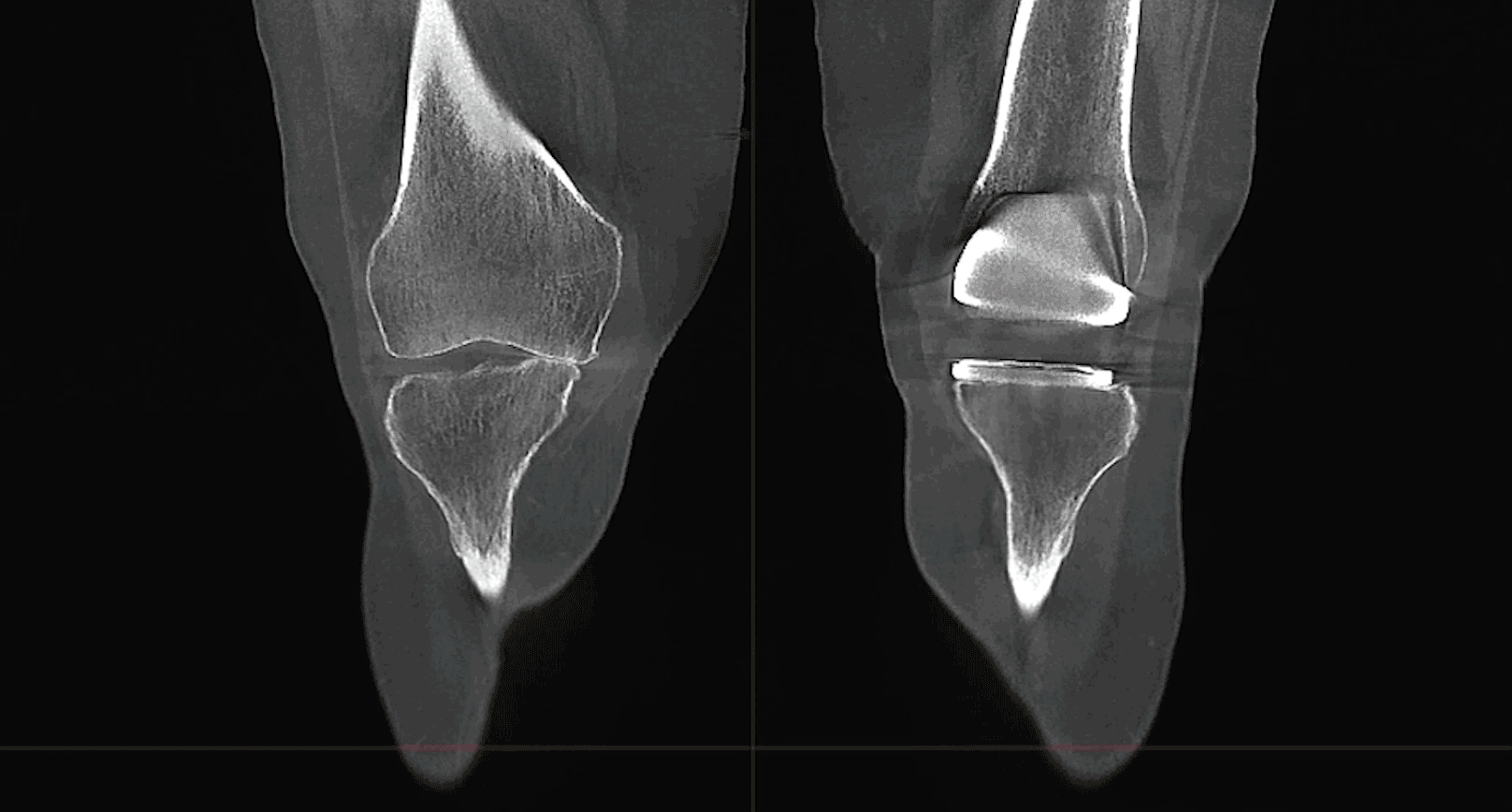

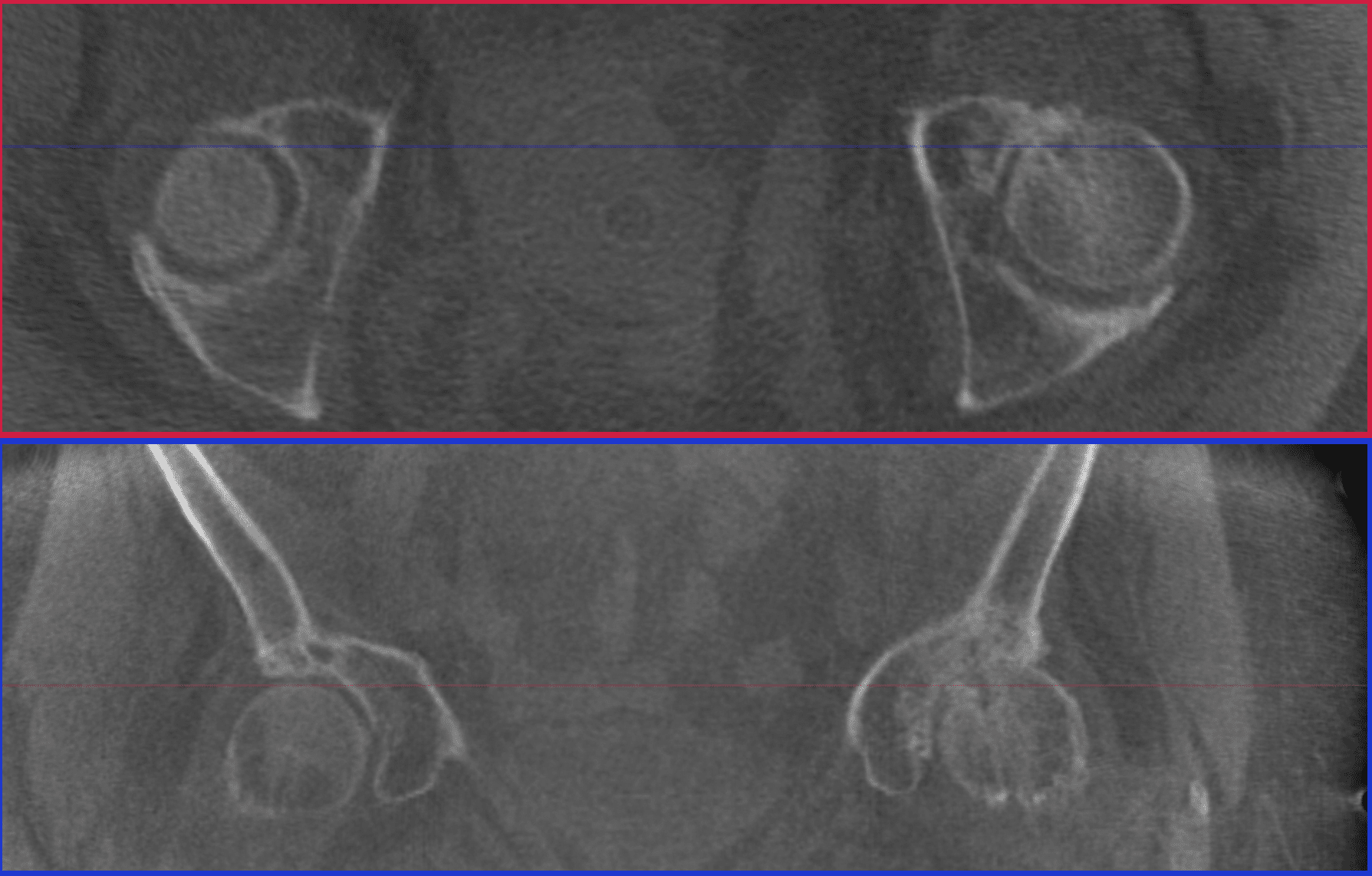

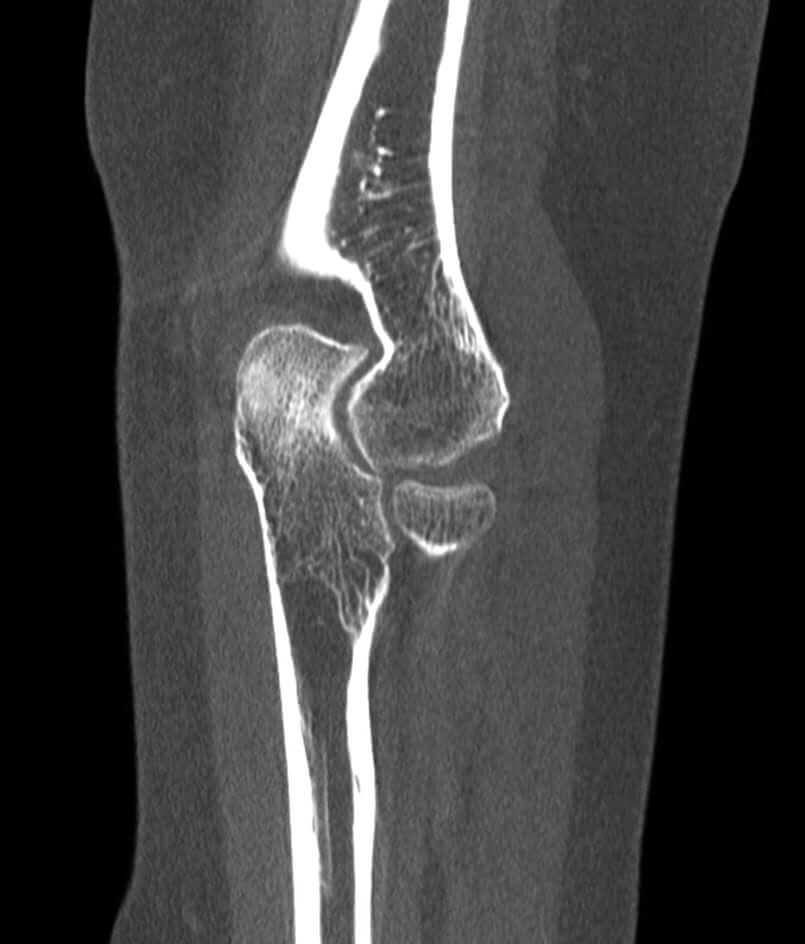

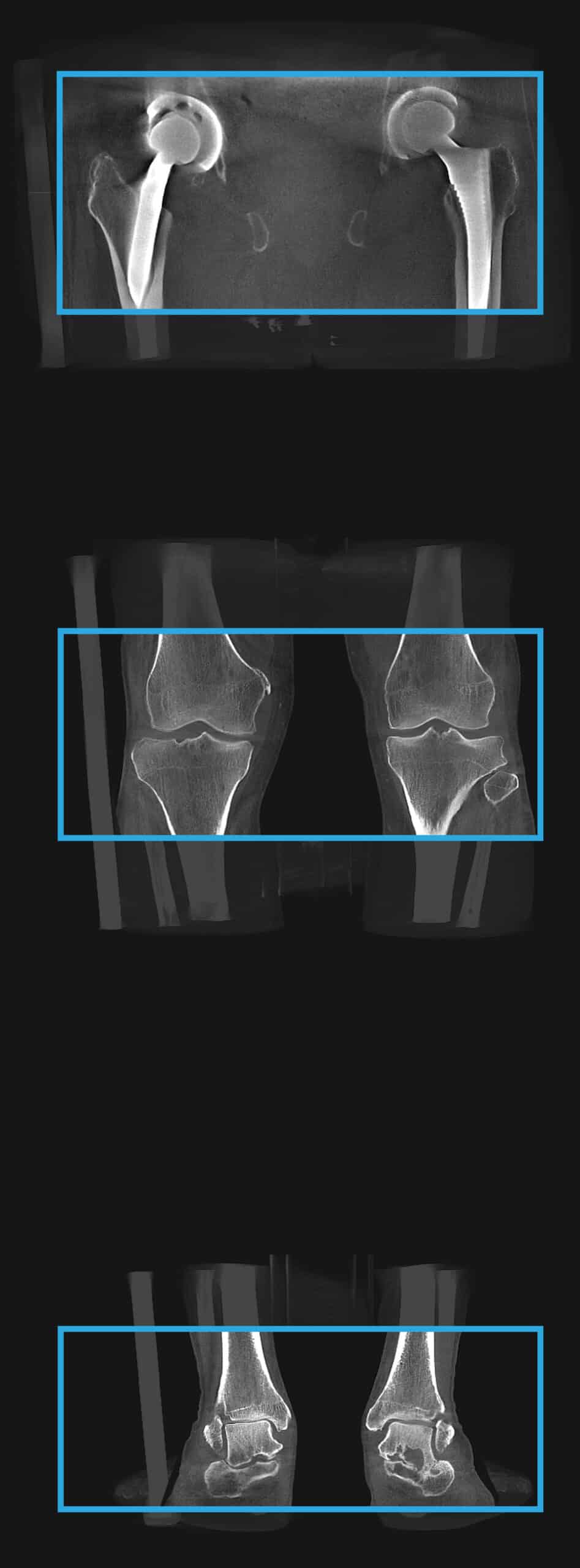

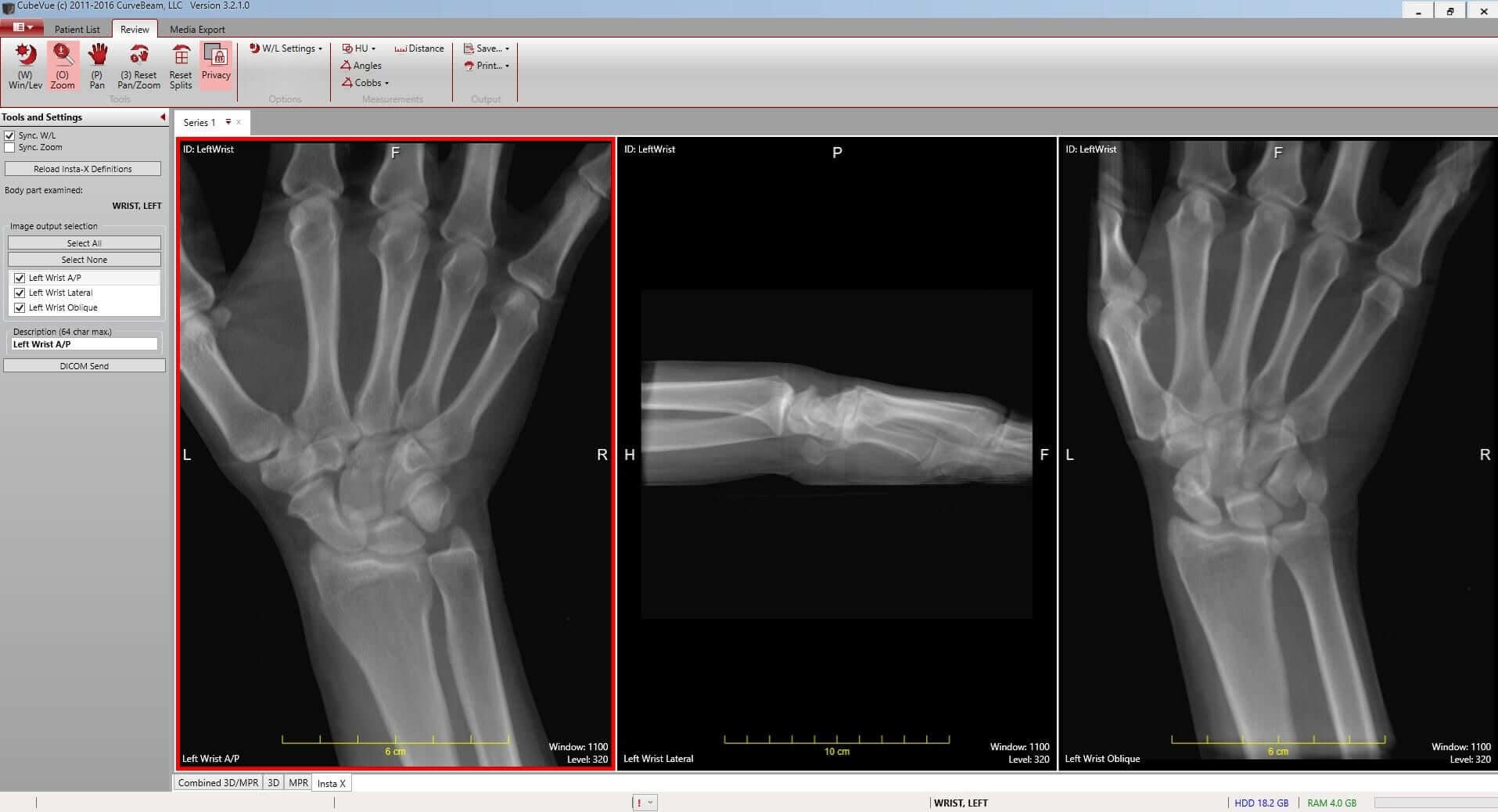

Capture weight bearing 3D images from the hips/pelvis through the feet, with non-weight bearing imaging options for the knees, feet, and ankles. HiRiseTM also provides high-resolution 3D imaging of the distal upper extremities, including the elbows, wrists, and hands.
Multiple fields of view and resolution options to match the anatomy and clinical question
Flexible positioning and acquisition options
Imaging to support diagnostic assessment, surgical planning, and postoperative evaluation
DESIGNED FOR ORTHOPEDIC ENVIRONMENTS
CT That Fits Your Space and Workflow
HiRiseTM brings comprehensive 3D imaging closer to the point of care in a compact system designed for orthopedic practices, imaging centers, and hospital environments.
- Open design that supports patient access and positioning
- Point-of-care imaging that keeps acquisition close to the clinical team
- Efficient workflow with minimal room preparation between scans
- Quiet operation suited to active clinical environments

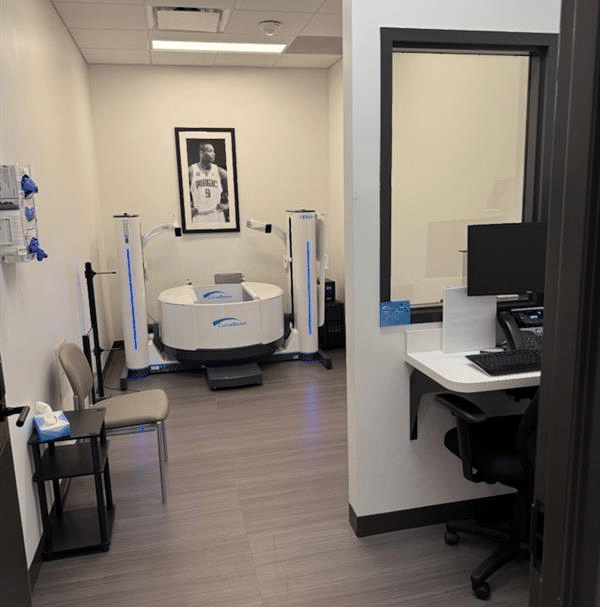

Fits through standard doorways and can be installed in rooms as small as 140 sq. ft. / 13 sq. m.
Connects to a standard single-phase power outlet
No separate operator control room required
Shielding requirements are comparable to those of a conventional X-ray room
Clinical Applications

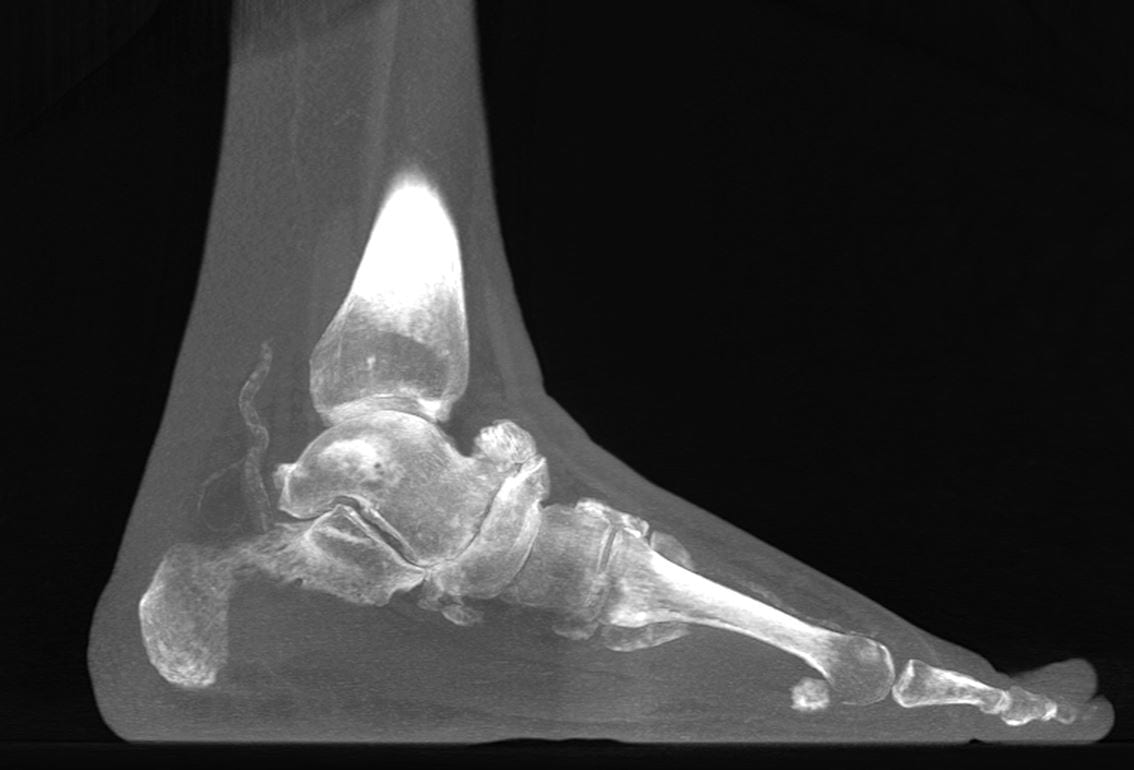

Deformity Evaluation

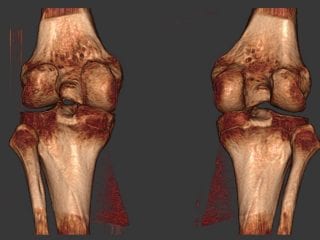

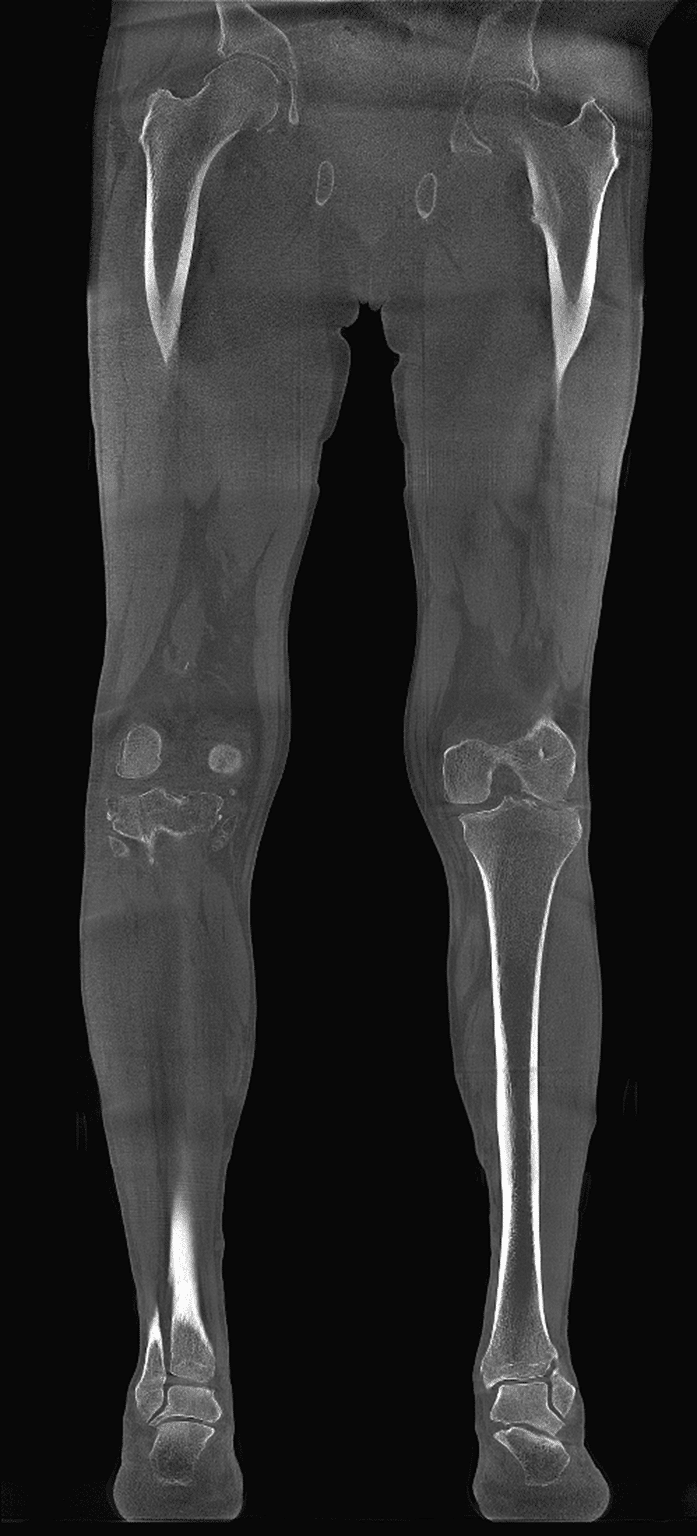

Weight bearing 3D imaging reveals alignment and joint relationships under physiologic load, supporting the evaluation of complex deformity.
Preoperative Planning
Detailed 3D imaging supports preoperative assessment of anatomy, alignment, bone morphology, and other factors relevant to surgical planning.

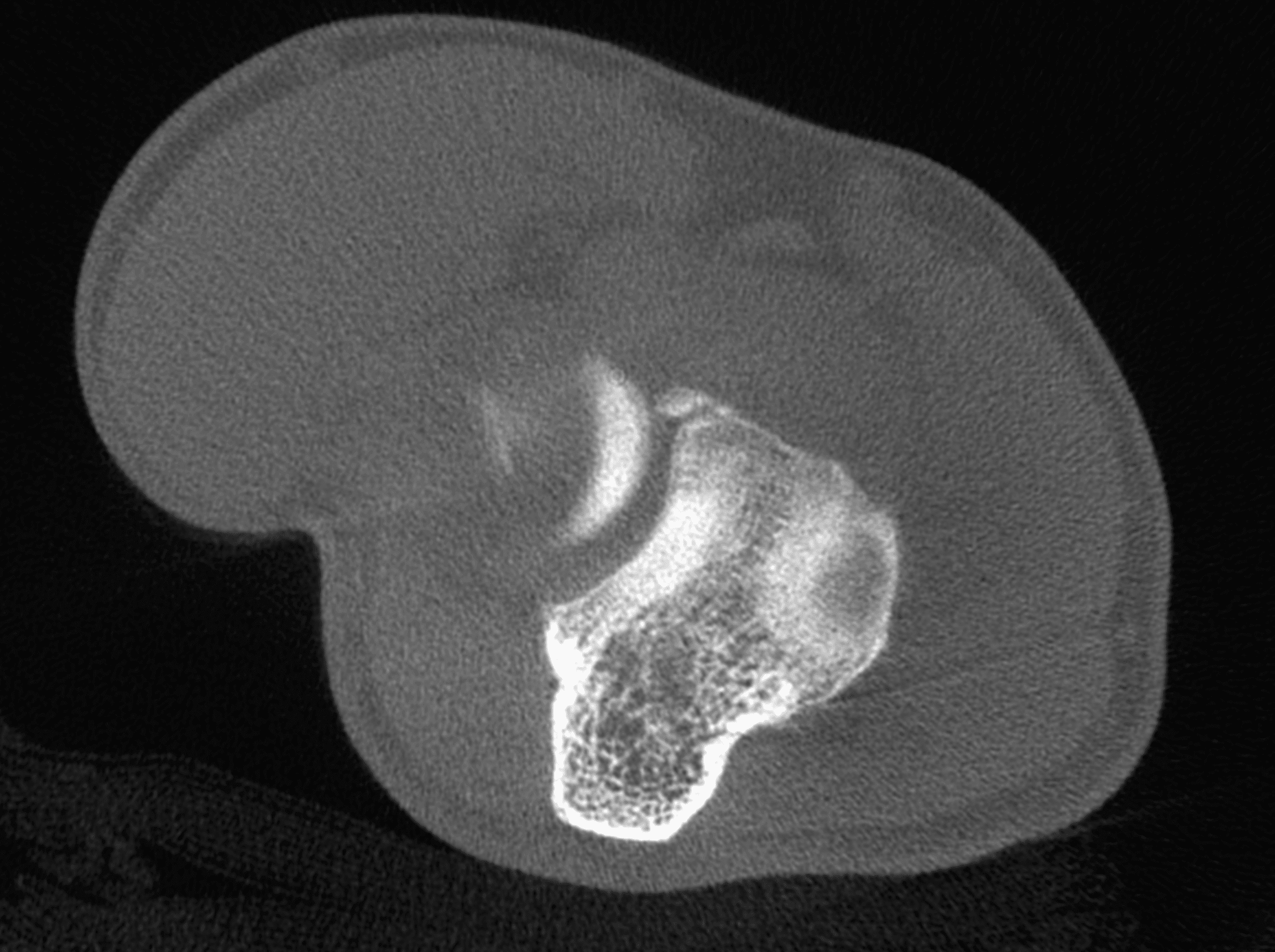

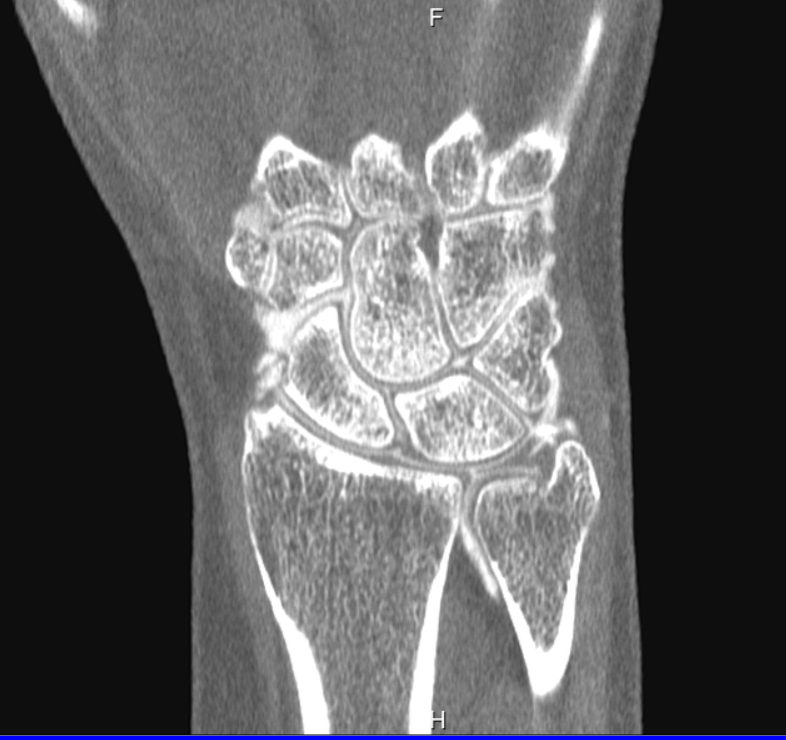

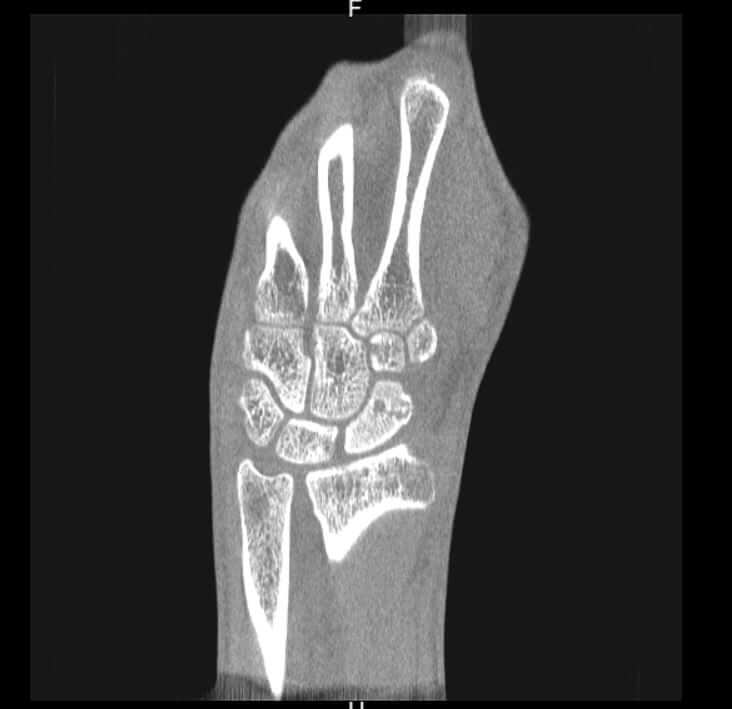

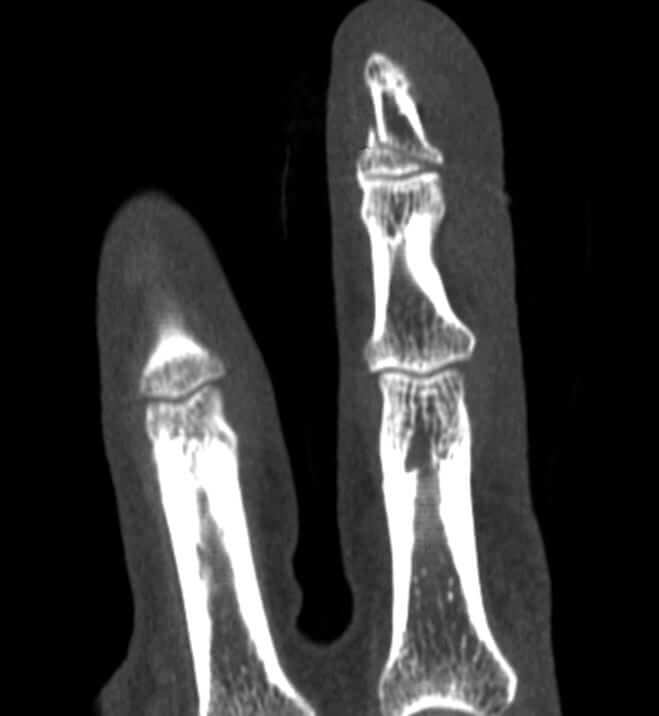

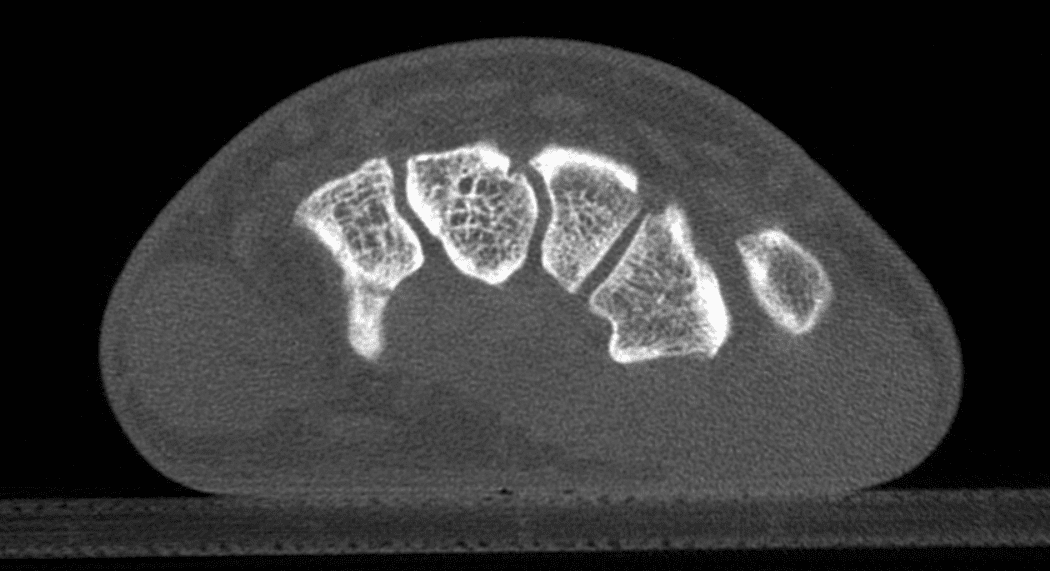

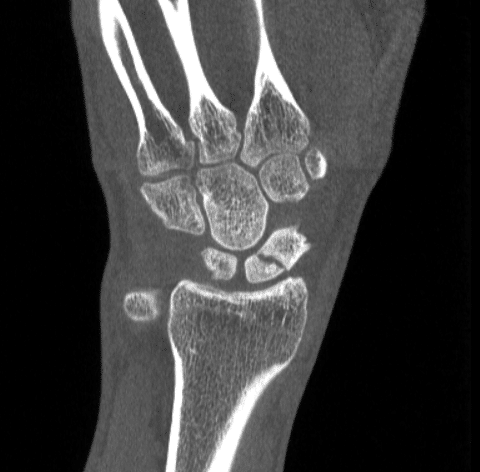

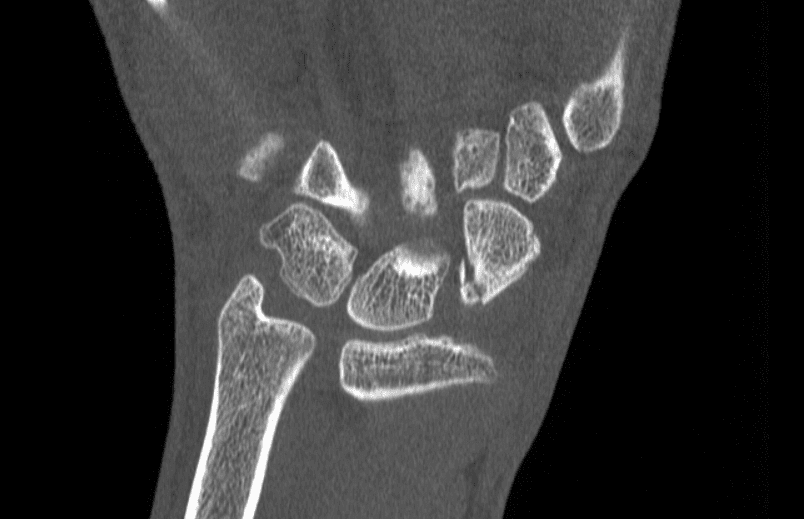

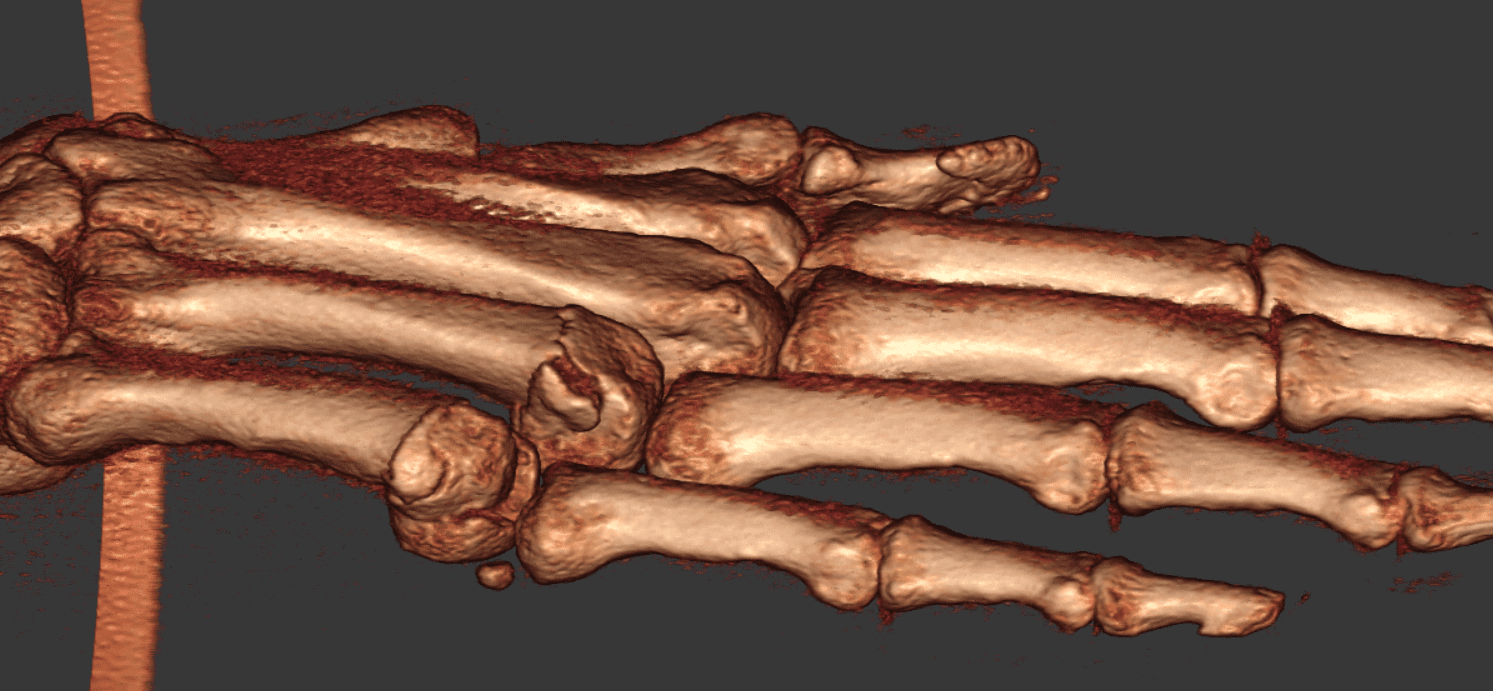

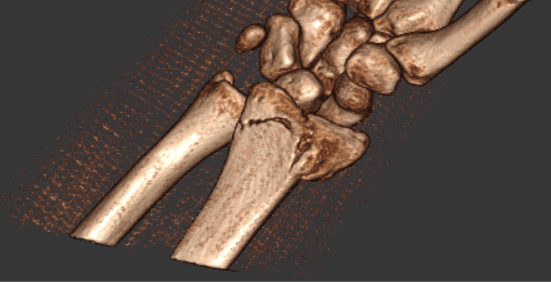

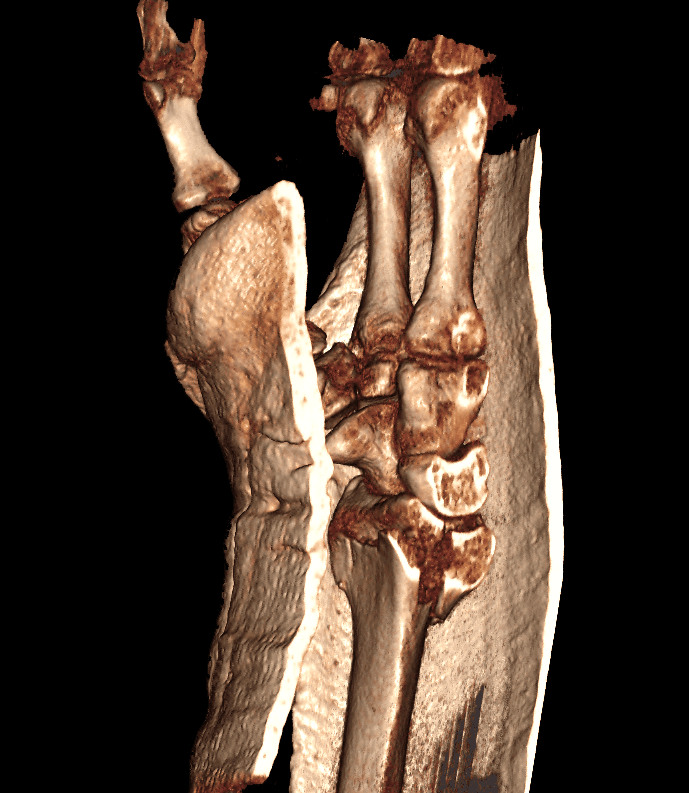

Fracture Visualization

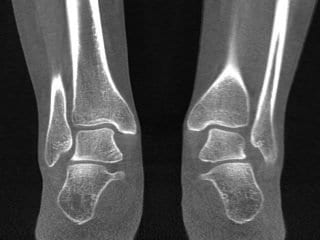

High-resolution CT supports the evaluation of complex
and occult fractures,
fracture morphology, and
bone healing.
DESIGNED FOR ORTHOPEDIC ENVIRONMENTS
Connect Imaging to the Surgical Workflow
HiRiseTM imaging supports workflows with leading orthopedic preoperative planning and intraoperative navigation platforms.
CLINICAL PERSPECTIVE
“
Weight Bearing CT is one of the biggest innovations in orthopedic imaging in the past decade. “
Dr. Eric Bogner, MD
Chief of the Division of CT
Hospital for Special Surgery (HSS)
MEDIA
See HiRiseTM in Action
Explore HiRiseTM imaging workflows, clinical applications, and customer perspectives.
HiRiseTM
Brochure
Product brochure for the HiRiseTM Weight Bearing CT Imaging System.
2.1 MB

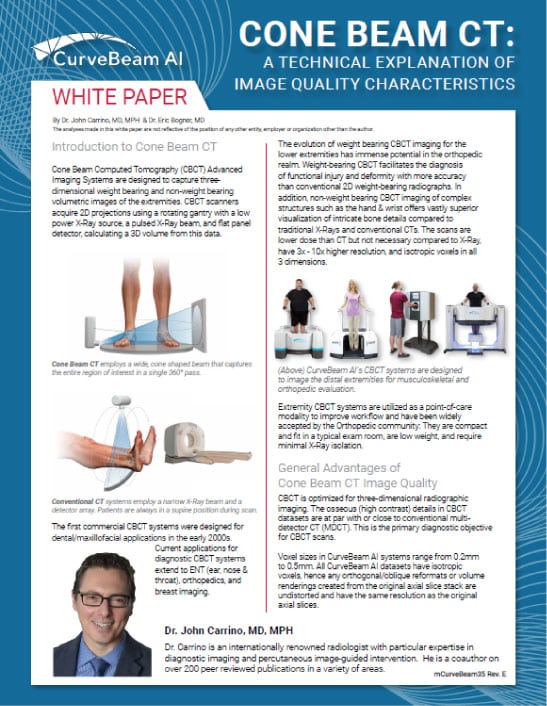

A CurveBeam AI whitepaper outlining image quality characteristics.
4.2 MB
Protocol guide
for Stryker Prophecy
HiRiseTM protocol.
3.6 MB
EFFECTIVE DOSE
Dose Optimized to the Exam

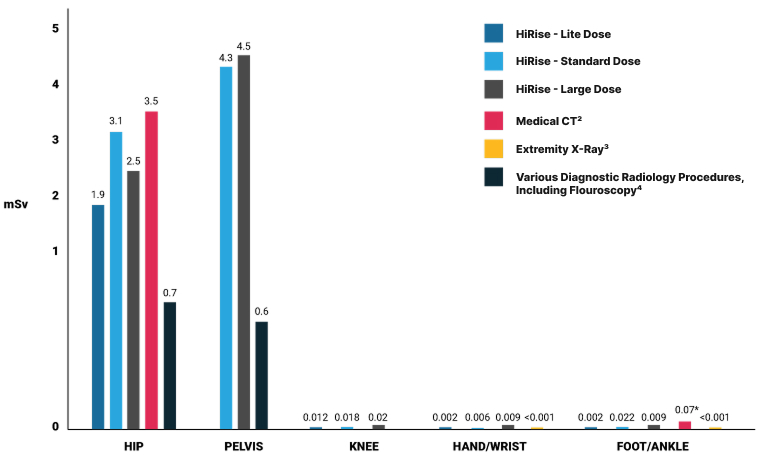

HiRiseTM uses anatomy-specific protocols with an effective dose range of 0.002–4.3 mSv. Dose varies by anatomy and selected protocol.
TECHNICAL SPECIFICTIONS
Large FOV
7.7” / 19.5cm (h) x 15.7” / 40cm (dia)
Medium FOV
7.7” / 19.5cm (h) x 9.9” / 25.39cm (dia)
Resolution
0.25mm, 0.3mm, 0.5mm
Weight
Scanner: 900lbs / 408kg, Chair: 220lbs / 100kg
Power Req.
240VAC / Minimum 20A Outlet
Tube Voltage
100kVp, 120kVp
Tube Current
12 – 20mA
